6.35*32玻璃管快斷保險絲-----UL CSA
1.規格型號和安規認證
MODEL NUMBER AND SAFETY CERTIFICATION
-
品名規格：系列號+額定電流+額定電壓+認證符號
Model Number: Part Number+Rated Current+Rated Voltage+Approvals.
例子[example]:
6GFU 10A 32V/72V/125V/250V 1)系列號 Part Number
2)額定電流 Rated Current
1） 2） 3） 3)額定電壓 Rated Voltage
1-2 額定電流和額定電壓
Rated Current And Voltage
額定電流： 63mA~35A
Rated Current: 63mA~35A
額定電壓;32V/72V/125V/250V AC
Rated Voltage: 32V/72V/125V250V AC
1-3標示Marking
保險絲上需有下列標示
The fuse shall have the following marking:
規格：特性符號+額定電流+額定電壓
Specification:Characteristic Symbol+Rated Voltage
63mA~800mA : _mA250V 1A~35A:_A250V
Trade mark:The Manufacture’s Logo+Part Number+Approvals
63mA~35A:
注意：對標示字樣大小沒有規定
Note:Size of the markings have not be specified.
2.適用範圍
SCOPE
適用於車載電子設備。Used in car equipment.
3.工程圖和結構
OUTLINE DRAWING AND STRUCTURE
3-1 工程圖（單位：mm）
Outline Drawing and Dimensions(Unit:mm)
3-2結構
Structure
編號
No.
|
元件
Component
|
材質
Material
|
數量
Quantity
|
|
(1)
|
熔絲
Wire
|
合金
Alloy
|
1
|
|
(2)
|
銅帽
Cap
|
黃銅鍍鎳
Brass with mickel plated
|
2
|
|
(3)
|
本體
Body
|
玻璃管
Glass Tube
|
1
|
|
(4)
|
引線
Lead
|
鍍錫銅線
Tinned Copper wire
|
2
|
4.外觀及形狀
APPEARANCES AND CONFIGURATION
4-1外觀：不應有破碎、明顯的汙斑
Appearances:There shall no fragmentation and of remarkable blotch.
4-2形狀：帶腳的保險絲
Configuration:Axial Leaded Fuse.
5.物理特性
PHYSICAL CHARACTERISTIC
5-1 拉力測試
Tensile test
沿端子的軸向施加10N的拉力，持續1分鐘。
Keep pulling the cap of the fuse with 10N at axial direction for 1 min.
6.電氣特性
ELECTRICAL CHARACTERISTICS

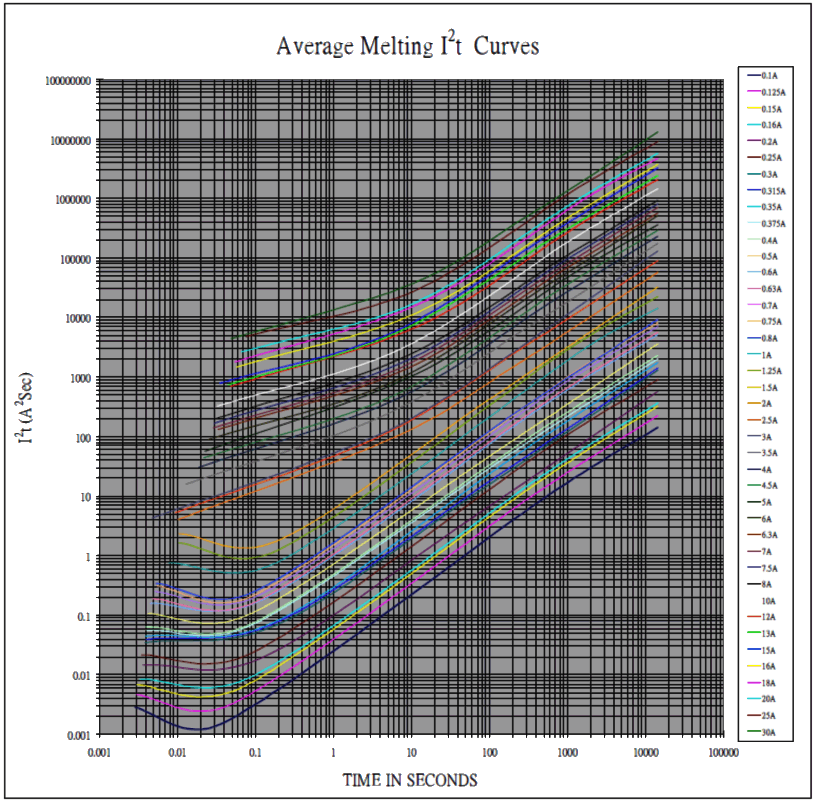

熔斷/電流特性：
Pre-Arcing Time/Current Characteristic
a、Breaking capacity（分?jǐn)嗄芰Γ?/span>
|
10000A
|
125V
|
AC
|
|
35A
|
250V
|
AC (less or 1A)
|
|
100A
|
250V
|
AC (1.1A—3.5A)
|
|
200A
|
250V
|
AC (3.6A—35A)
|
b、Electrical characteristics
Fast Acting(參照美標)
|
Rated current
|
100%
|
135%
|
200%
|
63mA~30A
|
Minimum
|
Maximum
|
Maximum
|
|
4 hours
|
1 hour
|
20 sec
|
(參照國標)
Rated current
|
210%
|
275%
|
500%
|
1000%
|
|
Max
|
Min
|
Max
|
Min
|
Max
|
Max
|
|
50mA~100mA
|
20s
|
2ms
|
200ms
|
1ms
|
30ms
|
5ms
|
|
>100mA~30A
|
20s
|
20ms
|
1500ms
|
8ms
|
400ms
|
80ms
|
c、Temperature character
When 100% of rating the temperature rise doesn’t exceed 75℃.
d、Approvals
|
Amp Code
|
Ampere
Rating (A)
|
Voltage
Rating
(V)
|
Nominal Cold
Resistance
(Ohms)
|
Nominal
Melting
I2t (A2 sec)
|
Agency Approvals
|
|
UL
|
KC
|
PSE
|
CSA
|
CE
|
|
6GFU-.062
|
0.062
|
250
|
24.7000
|
0.000249
|
x
|
|
|
|
x
|
|
6GFU-.100
|
0.1
|
250
|
11.2800
|
0.00102
|
x
|
|
|
|
x
|
|
6GFU-.125
|
0.125
|
250
|
7.1450
|
0.00289
|
x
|
|
|
|
x
|
|
6GFU-.150
|
0.15
|
250
|
5.1300
|
0.00550
|
x
|
|
|
|
x
|
|
6GFU-.175
|
0.175
|
250
|
3.8750
|
0.00960
|
x
|
|
|
|
x
|
|
6GFU-.187
|
0.187
|
250
|
3.4200
|
0.0128
|
x
|
|
|
|
x
|
|
6GFU-.200
|
0.2
|
250
|
3.0200
|
0.0165
|
x
|
|
|
|
x
|
|
6GFU-.250
|
0.25
|
250
|
2.0100
|
0.0355
|
x
|
|
|
|
x
|
|
6GFU-.300
|
0.3
|
250
|
1.4050
|
0.0689
|
x
|
|
|
|
x
|
|
6GFU-.375
|
0.375
|
250
|
0.8250
|
0.185
|
x
|
|
|
|
x
|
|
6GFU-.500
|
0.5
|
250
|
0.4980
|
0.483
|
x
|
|
|
|
x
|
|
6GFU-.600
|
.6
|
250
|
0.3620
|
0.880
|
x
|
|
|
|
x
|
|
6GFU-.750
|
0.75
|
250
|
0.2445
|
1.84
|
x
|
|
|
|
x
|
|
6GFU-001.
|
1
|
250
|
0.1900
|
0.760
|
x
|
x
|
x
|
x
|
x
|
|
6GFU-1.25
|
1.25
|
250
|
0.1385
|
1.45
|
x
|
x
|
x
|
x
|
x
|
|
6GFU-01.5
|
1.5
|
250
|
0.1036
|
2.35
|
x
|
|
x
|
x
|
x
|
|
6GFU-01.6
|
1.6
|
250
|
0.0934
|
2.80
|
x
|
x
|
x
|
x
|
x
|
|
6GFU-1.75
|
1.75
|
250
|
0.0856
|
3.60
|
x
|
|
x
|
x
|
x
|
|
6GFU-01.8
|
1.8
|
250
|
0.0825
|
3.85
|
x
|
|
x
|
x
|
x
|
|
6GFU-002.
|
2
|
250
|
0.0704
|
5.20
|
x
|
x
|
x
|
x
|
x
|
|
6GFU-02.5
|
2.5
|
250
|
0.0513
|
9.54
|
x
|
x
|
x
|
x
|
x
|
|
6GFU-003.
|
3
|
250
|
0.0427
|
14.0
|
x
|
x
|
x
|
x
|
x
|
|
6GFU-004.
|
4
|
250
|
0.0293
|
28.5
|
x
|
x
|
x
|
x
|
x
|
|
6GFU-005.
|
5
|
250
|
0.0224
|
50.0
|
x
|
x
|
x
|
x
|
x
|
|
6GFU-006.
|
6
|
250
|
0.0178
|
118.0
|
x
|
x
|
x
|
x
|
x
|
|
6GFU-007.
|
7
|
250
|
0.0146
|
118.0
|
x
|
x
|
x
|
x
|
x
|
|
6GFU-008.
|
8
|
250
|
0.0122
|
166.0
|
x
|
x
|
x
|
x
|
x
|
|
6GFU-010.
|
10
|
250
|
0.0093
|
298.0
|
x
|
x
|
x
|
x
|
x
|
|
6GFU-012.
|
12
|
32
|
0.0072
|
234.6
|
x
|
|
|
|
x
|
|
6GFU-015.
|
15
|
32
|
0.0052
|
490.5
|
x
|
|
|
|
x
|
|
6GFU-020.
|
20
|
32
|
0.0035
|
1029
|
x
|
|
|
|
x
|
|
6GFU-025.
|
25
|
32
|
0.0024
|
2041
|
x
|
|
|
|
|
|
6GFU-030.
|
30
|
32
|
0.0019
|
3717
|
x
|
|
|
|
|
|
6GFU-035.
|
35
|
32
|
0.0013
|
7531
|
|
|
|
|
|
7.環境特性
ENVIRONMENTAL SPECIFICATION
7-1 操作溫度範圍：-20℃~60℃
Operating Temperature: -20℃~60℃
7-2 保存條件
Storage Conditions
溫度：-30℃~80℃
Temperature: -30℃~80℃
在相對濕度≤75%下平均可存放3年
On average, It can be stored below the relative humidity or 75% for 3 years.
在非露天下，相對濕度為95%下最多可存放30天。
Without dew, It can be kept under humidity of 95% for 30 days.
8.焊接條件
SOLDERING PAAMETERS
8-1波峰焊
Wave Solder
焊接溫度：260±5℃
Soldering Temperature:260±5℃
焊接時間：4 Sec. Max.
Soldering Time:4 Sec.Max.
8-2手工焊錫
Manual Solder
焊接溫度：350±5℃
Soldering Temperature: 350±5℃
焊接時間：3 Sec. Max.
Soldering Time: 3 Sec. Max.
9.其他使用注意事項
OTHER NOTICE IN USING
如果需在保險絲上加熱縮套管，烘烤溫度與時間需參照以下規定
If heat shrink tubing was needed,the roast temperature and time should be refer to the following.
設定烘烤溫度：不大於150℃ 烘烤時間：50s Max.
The temperature should be se
