1032(3X10)圓管貼片保險絲
Description：
The SMD1032 fuse is RoHS compliant,Halogen Free and 100% lead-free. This product is fully compatible with lead-free solder alloys and higher temperature profiles associated with lead-free assembly.The SMD1032 design has enhanced inrush withstand characteristics over . The unique time delay feature of this fuse design helps solve the problem of nuisance “opening” by accommodating inrush currents that normally cause a fast-acting fuse to open。
Features：
? Lead-free and Halogen Free ? Time-lag? Small size ? Wide range of current ratings available ? Wide operating temperature range? Low temperature de-rating
Applications：
Secondary protection for space constrained applications:
? Notebook PC ? LCD/PDP TV ? LCD monitor ? LCD/PDP panel ? LCD backlight inverter ? Portable DVD player ? Power supply? Networking ? PC server ? Cooling fan system ? Storage system ? Telecom system ? Wireless basestation ? Game console ? Office Automation equipment ? Battery charging circuit protection ? Industrial equipment? Medical equipment ? Automotive
Dimensions
Material Details
|
NO.
|
Part Name
|
Material
|
|
1
|
End caps
|
Copper nickel/tin plating
|
|
2
|
Body
|
Ceramic Tube
|
|
3
|
Fuse
|
Alloy wire
|
|
4
|
Explosion proof sand
|
Quartz sand
|
Electrical Characteristics for Series
|
% of Ampere rating
|
OpeningTime
|
|
100%
|
4 hours, Minimum
|
|
200%
|
60 sec., Max.
|
Electrical Specifications by Item
|
Catalog Number
|
Ampere Rating
|
MaxVoltage
Rating(V)
|
Interrupting
Rating
|
Nominal Resistance Cold mOhms
|
Nominal Melting i2tA2Sec.
|
Agency Approvals
|
|
CE
|
UR
|
CQC
|
|
.100
|
.100
|
250V/300VAC
72V/125VAC/DC
|
100A @125VAC
300A @ 65VAC
300A @ 100VDC
1000A @ 32VDC
500A @ 72VDC
|
3.300
|
0.00160
|
×
|
×
|
|
|
.125
|
.125
|
2.300
|
0.00790
|
×
|
×
|
|
|
.160
|
.160
|
1.700
|
0.0128
|
×
|
×
|
|
|
.200
|
.200
|
0.500
|
0.0200
|
×
|
×
|
×
|
|
.250
|
.250
|
0.630
|
0.312
|
×
|
×
|
×
|
|
.315
|
.315
|
0.460
|
0.422
|
×
|
×
|
×
|
|
.400
|
.400
|
0.360
|
0.755
|
×
|
×
|
×
|
|
.500
|
.500
|
0.310
|
1.32
|
×
|
×
|
×
|
|
.630
|
.630
|
0.178
|
2.55
|
×
|
×
|
×
|
|
.800
|
.800
|
0.125
|
3.25
|
×
|
×
|
×
|
|
.001
|
1.00
|
0.092
|
6.95
|
×
|
×
|
×
|
|
1.25
|
1.25
|
0.065
|
12.1
|
×
|
×
|
×
|
|
01.6
|
1.60
|
0.048
|
18.2
|
×
|
×
|
×
|
|
002.
|
2.00
|
0.035
|
20.8
|
×
|
×
|
×
|
|
02.5
|
2.50
|
0.028
|
32.5
|
×
|
×
|
×
|
|
3.15
|
3.15
|
0.020
|
40.8
|
×
|
×
|
×
|
|
004.
|
4.00
|
0.016
|
95.0
|
×
|
×
|
×
|
|
005.
|
5.00
|
0.014
|
140
|
×
|
×
|
×
|
|
06.3
|
6.30
|
0.009
|
240
|
×
|
×
|
×
|
|
008
|
8
|
0.0072
|
320
|
×
|
×
|
×
|
|
010
|
10
|
0.0065
|
430
|
×
|
×
|
×
|
Notes: - l2t calculated at 8ms. Resistance is measured at 10% of rated current, 2
3oC

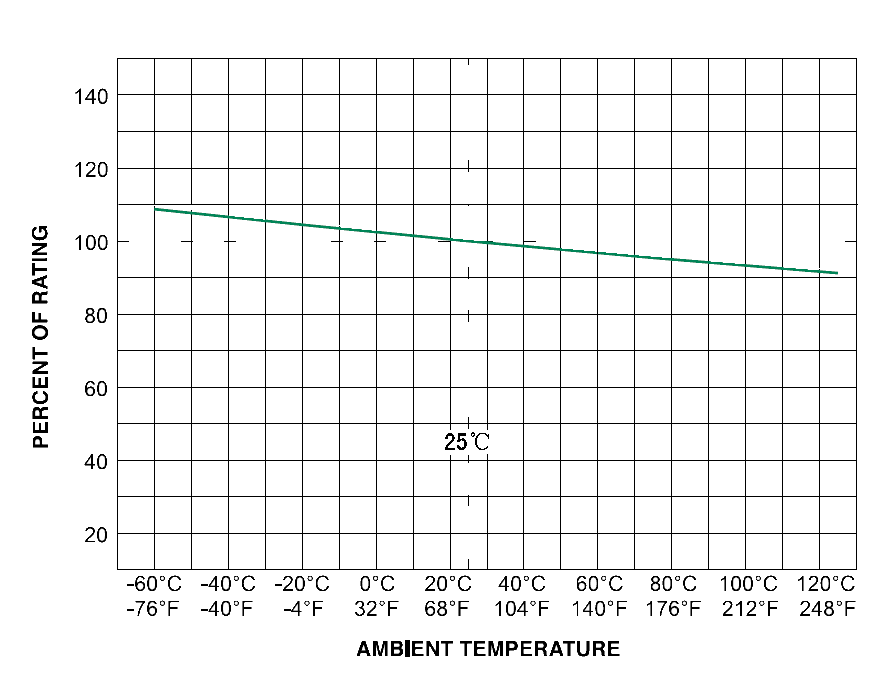

Temperature Derating Curve
Notes:
1. Derating depicted in this curve is in addition to the standard derating of 20% for continuous operation.
Example:For continuous operation at 75 degrees celsius, the fuse should be derated as follows:I = (0.80)(0.85)IRAT= (0.68)IRAT
|

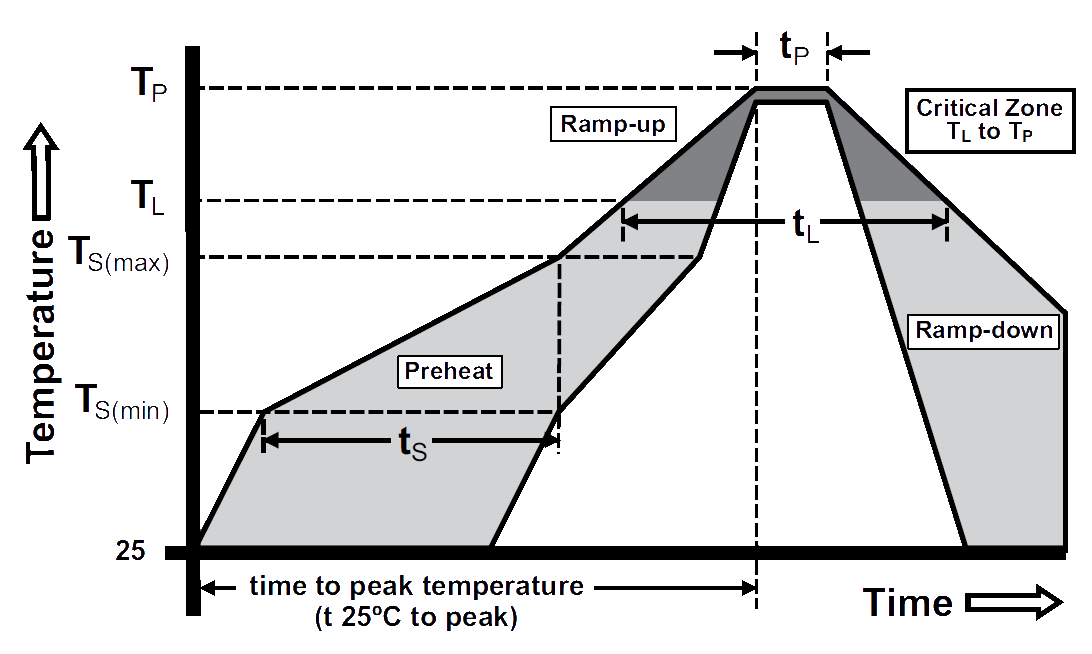

Reflow Condition
|
Pb – Free assembly
|
|
Pre Heat
|
- Temperature Min (Ts(min)) 150°C
|
|
- Temperature Max (Ts(max)) 200°C
|
|
- Time (Min to Max) (ts) 60 – 120 secs
|
|
Average ramp up rate (Liquidus Temp (TL) to peak
|
3°C/second max
|
|
TS(max) to TL - Ramp-up Rate
|
3°C/second max
|
|
Reflow
|
- Temperature (TL) (Liquidus) 217°C
|
|
- Temperature (tL) 60 – 90 seconds
|
|
Peak Temperature (TP)
|
260+0/–5 °C
|
|
Time within 5°C of actual peak Temperature (tp)
|
20 – 40 seconds
|
|
Ramp-down Rate
|
5°C/second max.
|
|
Time 25°C to peak Temperature (TP)
|
8 minutes max.
|
|
Do not exceed
|
260°C
|
|
Wave Soldering Parameters
|
260°C Peak Temperature,3 seconds max.
|
Soldering Parameters
Product Characteristics
|
Materials
|
Body: Ceramic Terminations: Gold-plated Caps
|
|
Product Marking
|
Brand, Amperage Rating
|
|
Operating Temperature
|
-55°C to 300V°C
|
|
Moisture Sensitivity Level
|
Level 1, J-STD-020C
|
|
Solderability
|
MIL-STD-202, Method 208
|
|
Insulation Resistance (after Opening)
|
MIL-STD-202, Method 302,
Test ConditionA (10,000 ohms minimum)
|
|
Thermal Shock
|
MIL-STD-202, Method 107, Test Condition B, 5 cycles, -65°C to 300V°C, 15 minutes @ each extreme
|
|
Mechanical Shock
|
MIL-STD-202, Method 213, Test I:Deenergized. 100G’s pk amplitude, sawtooth wave 6ms duration, 3 cycles xYZ+xyz = 18 shocks
|
|
Vibration
|
MIL-STD-202, Method 201: 0.03" amplitude, 10-55 Hz in 1 min. 2hrs each xYZ=6hrs
|
|
Moisture Resistance
|
MIL-STD-202, Method 106, 10 cycles
|
|
Salt Spray
|
MIL-STD-202, Method 101, Test Condition B (48hrs)
|
|
Resistance to Soldering Heat
|
MIL-STD-202, Method 210, Test condition B (10 sec at 260°C)
|
Packaging
|
packaging Option
|
packaging Specification
|
Quantity
|
Quantity &packaging code
|
|
24 mm Tape and Reel
|
EIA RS-481-2
|
2000
|
ER
|
